Setting up Git Repository for Ansible

Install DNF on the Client Side

$ dnf install git
================================================================================
 Package             Architecture  Version               Repository        Size
================================================================================
Upgrading:
 git                 x86_64        2.31.1-3.el8_7        appstream        160 k
 git-core            x86_64        2.31.1-3.el8_7        appstream        4.8 M
 git-core-doc        noarch        2.31.1-3.el8_7        appstream        2.6 M
 perl-Git            noarch        2.31.1-3.el8_7        appstream         77 k

Transaction Summary
================================================================================
Upgrade  4 Packages

Total download size: 7.6 M
Is this ok [y/N]:

At github.com,

Do sign up for an account if you have not done so. At github.com, create a new Repository and give it a new name. Look at the pix for more information

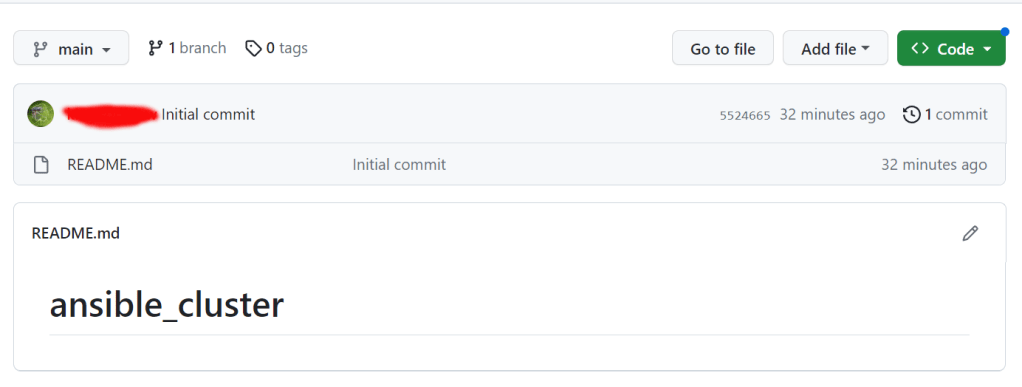

Once you have created the repository, you should have something like this

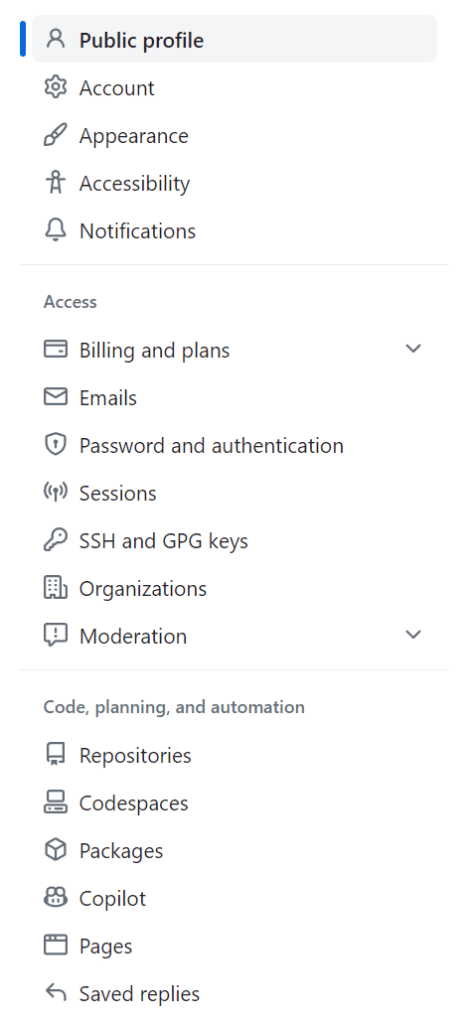

At the profile Icon, click settings, you should enter the page where “SSH and GPG Keys” are present

Click the new SSH icon

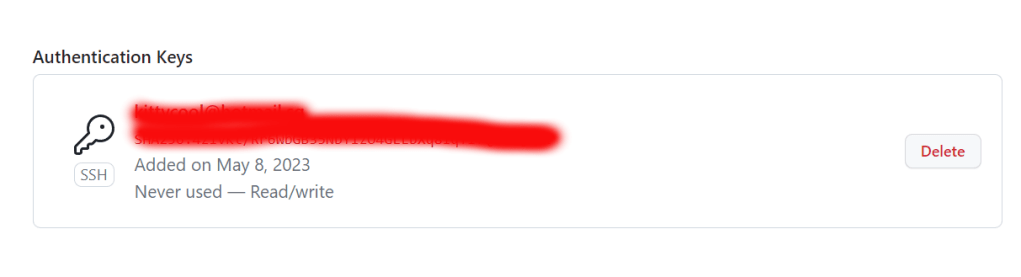

Type the name of the key (Your Choice) and copy your ssh public keys into the key box. This can be found at ~/.ssh/id_rsa.pub or ~/.ssh/ed25519.pub. Copy the whole string and paste into the key box

Git Clone the Repository URL

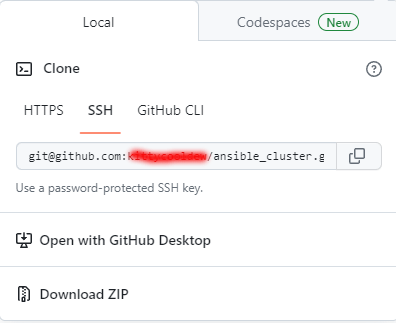

Go back to your repository and copy the code

Next

At the Linux Server….

git clone the URL

$ git clone git@github.com:XXXXXXXXXX/ansible_cluster.git
Cloning into 'ansible_cluster'...
Warning: Permanently added 'github.com,20.205.243.166' (ECDSA) to the list of known hosts.
remote: Enumerating objects: 3, done.
remote: Counting objects: 100% (3/3), done.
remote: Total 3 (delta 0), reused 0 (delta 0), pack-reused 0
Receiving objects: 100% (3/3), done.

At your directory go to the ansible_cluster folder, you should be able to see the README.md file which is same as your git repository.

$ cd ansible_cluster
$ cat README.md
# ansible_cluster

Setting some basic git information like user name and email address

$ git config --global user.name "user1"
$ git config --global user.email "user1@hello.com"
$ cat ~/.gitconfig
[user]
        name = melvin soh
        email = melvin@ntu.edu.sg
[init]
        defaultBranch = main

Pushing and cloning to the git repository

Let’s make some changes to the README.md

$ vim README.md
#ansible_tutorial

Hello

Checking their Status

$ git status
On branch main
Your branch is up to date with 'origin/main'.

Changes not staged for commit:
  (use "git add <file>..." to update what will be committed)
  (use "git restore <file>..." to discard changes in working directory)
        modified:   README.md

no changes added to commit (use "git add" and/or "git commit -a")

Add the changes, coming and pushing the changes to git

$ git add README.md
$ git status
On branch main
Your branch is up to date with 'origin/main'.

Changes to be committed:
  (use "git restore --staged <file>..." to unstage)
        modified:   README.md

$ git commit -m "Updated Readme file on 8/5/2023"
[main 06583ec] Updated Readme file on 8/5/2023
 1 file changed, 3 insertions(+), 1 deletion(-)

$ git push origin main
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Writing objects: 100% (3/3), 308 bytes | 102.00 KiB/s, done.
Total 3 (delta 0), reused 0 (delta 0), pack-reused 0
To github.com:kittycooldew/ansible_cluster.git
   5524665..62b9b0a  main -> main

References:

  1. Top 20 Git Commands With Examples
  2. Learn Linux TV Chapter 3
Advertisement

Basic Introduction to Git (Part 2)

Initialising a Repository in an Existing Directory

If you wish to have a project directory under version control with GIt, do the following

$ cd /home/user/my_project
$ git init

If you wish to add existing files into the version control

$ git add *.sh
$ git add LICENSE
$ git commit --m "Gekko Menu Help Application"
[master (root-commit) c98ae91] Gekko Menu Help Application
 1 file changed, 73 insertions(+)
 create mode 100755 mymenu.sh

You have an initial commit and tracked files. Hooray.

Checking the status of your Files

[user1@node1 menu]$ git status
# On branch master
nothing to commit, working directory clean

This means you have a clean working directory; in other words, none of your tracked files are modified.

Adding new files to your Git Directory

Let’s say you added a new file called check_license_abaqus.sh into the Project Directory, you will have something like

# On branch master
# Untracked files:
#   (use "git add <file>..." to include in what will be committed)
#
#       check_license_abaqus.sh
nothing added to commit but untracked files present (use "git add" to track)

To add files

[user1@node1 menu]$ git add check_license_abaqus.sh
[user1@node1 menu]$ git status
# On branch master
# Changes to be committed:
#   (use "git reset HEAD <file>..." to unstage)
#
#       new file:   check_license_abaqus.sh
#

To remove file

[user1@node1 menu]$ git rm check_license_abaqus.sh -f
rm 'check_license_abaqus.sh'
[user1@node1 menu]$ git status
# On branch master
nothing to commit, working directory clean

To see log, you want to use the command

[user1@node1 menu]$ git log
commit xxxxxxxxx
Author: user1 <kmyemail_used_in_Github@hotmail.com>
Date:   Sun Sep 25 23:50:33 2022 +0800

    Gekko Menu Help Application

There are many more usage. For more information, do take a look at 2.3 Git Basics – Viewing the Commit History

References:

  1. 2.2 Git Basics – Recording Changes to the Repository
  2. 2.3 Git Basics – Viewing the Commit History
  3. 2.4 Git Basics – Undoing Things

Basic Introduction to GitHub (Part 1)

GitHub is the largest code-hosting platform in the world. It uses Git as version control and the repository is based on GitHub. Features such as Pull Requests, Project Boards and GitHub are central and found in one place.

Sign up for a Free Account

To start using GitHub, please go to https://github.com/join and follow the instruction

Creating a PAT of SSH Key

A PAT is a string of characters that can be used in place of a password against the GitHub API and on command lone.

You may need to understand the various scopes on GitHub such as repo, admin: repo_hook, users etc. For more information, do take a look at https://docs.github.com/en/developers/apps/building-oauth-apps/scopes-for-oauth-apps#available-scopes

For starters, you may want to go to https://github.com/settings/tokens and click on Generate new token

On Linux, you can generate your SSH key using the email that you have created in your GitHub User Account

[user1@node1 ~]$ ssh-keygen -t rsa -C "myemail_used_in_Github@hotmail.com"
Generating public/private rsa key pair.
Enter file in which to save the key (/home/user1/.ssh/id_rsa):
/home/user1/.ssh/id_rsa already exists.
Overwrite (y/n)? y
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/user1/.ssh/id_rsa.
Your public key has been saved in /home/user1/.ssh/id_rsa.pub.
The key fingerprint is:
........
........

Adding the SSH Key to the ssh-agent

Although this is not mandatory, adding the SSH Key to the SSH Agent is a good practice that will keep the SSH Key safe. The SSH-agent is an SSH Key Manager that helps to keep the SSH key safe because it protects your SSH keys from being exported. The SSH Agent also saves you from having to type the passphrase you create. every time your SSH key is used.

Before you check, you want to check your ~/.ssh/config first

$ vim ~/.ssh/config
Host *
AddKeysToAgent yes

At the Terminal,

$ ssh-add ~/.ssh/id_rsa

Copy your SSH Public Key to the field. In your ~/.ssh/config, it should have a .pub extension like id_rsa.pub

Configuring Git

To intialise the Git. Do the following. You may want to take a look at

[user1@node1 ~]$ git config --global user.name "Melvin Soh"
[user1@node1 ~]$ git config --global user.email "kittycool@hotmail.sg"
[user1@node1 ~]$ git config --global init.defaultBranch main
[user1@node1 ~]$ git config --list
credential.helper=netrc -f ~/.netrc.gpg -v
user.name=user1
user.email=myemail_used_in_Github@hotmail.com
init.defaultbranch=main

To continue, See Basic Introduction to GitHub (Part 2)

References:

  1. 1.5 Getting Started – Installing Git
  2. 1.6 Getting Started – First-Time Git Setup
