Options for ANSYS Batch Mode

OptionsDescription
-aasstart Fluent in server mode
-actload ACT Start page
affinity=<x>set processor affinity; <x>={core | sock | off}
-applaunches the Remote Visualization Client
-appscript=<scriptfile>run the specified script in App
-case <file_path> [-data]reads the case file immediately after Fluent launches;
can include the data file if it shares the same name as the case file
-cflushflush the file cache buffer
-cnf=<x>specify the hosts file
-command=”<TUI command>”run TUI command on startup,
-driver <name>sets the graphics driver;
 <name>={opengl | opengl2 | x11 | null}
-envshow environment variables
-grun without GUI or graphics
-gpgpu=<n>    specify number of GPGPUs per machine
-gpu[=<n>]run with GPU Solver, and specify devices to
use as needed (where <n> is a comma-separated
list of devices)
-grrun without graphics
-gurun without GUI
-gui_machine=<hostname>specify the machine to be used for running
graphics-related process
-h<heap_size>  specify heap size for Cortex
-helpthis listing
-host_ip=<host:ip>specify the ip interface to be used by the host process
-i <journal>   read the specified journal file
-license=<x>specify the license capability;
<x>={enterprise | premium}
-meshingrun Fluent in meshing mode
-mpi=<mpi>specify MPI implementation;
 <mpi>={openmpi | intel | …},
-mpitest       run the mpitest program instead of Fluent
to test the network
-nmdon’t display mesh after reading
-pcheckcheck the network connections before spawning
compute node processes
-platform=inteluse AVX2 optimized binary;
This option is for processors that can
support AVX2 instruction set
-postrun a post-processing-only executable
-prepost       run a pre/post-processing-only executable
-p<ic>specify interconnect;
<ic>={default | eth | ib},
-rlist all releases
-r<x>specify release <x>

by

Updating ANSYS 2023R2 License Server Information for Linux Client using the command line

If you are updating ANSYS License Server Information for ANSYS Client using only the command line, do the following

# vim usr/local/ansys_inc/shared_files/licensing/ansyslmd.ini
SERVER=1055@IP_Address_Of_ANSYS_LIC_SVR
ANSYSLI_SERVERS=2325@IP_Address_Of_ANSYS_LIC_SVR

Make sure the 1055, 1056, 2325 Ports of the License Server are opened.

by

Failover feature “HFSS SBR+Solve” is not available. Request name hfssbr_solve does not exist in the licensing pool.

During usage of ANSYS EM, you may encounter issues like the one below.

Fail to enable feature using current license setting. Note that pro, premium, enterprise licenses are available on your server. To use these licenses check the corresponding UI option. For more information, search "PPE" in the help documentation. Failover feature "HFSS SBR+Solve" is not available. Request name hfssbr_solve does not exist in the licensing pool. No such feature exists. Feature: hfssbr_solveLicensepath: 1055@kangkong.hpc.ntu.edu.sg: FlexNet Licensing error:-5,147

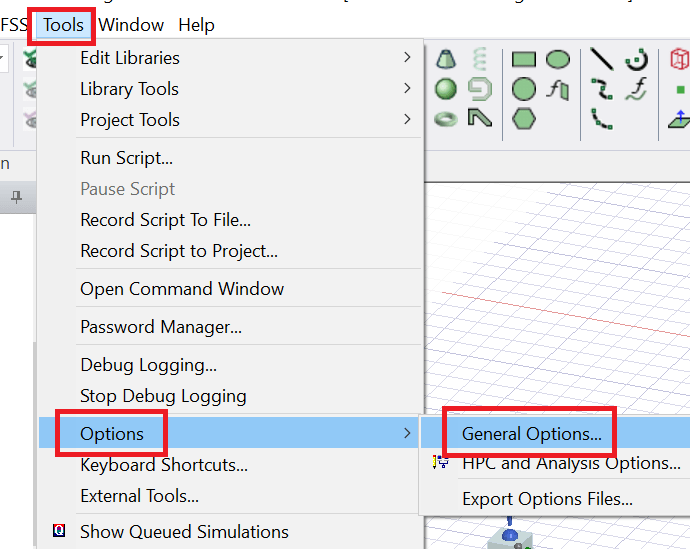

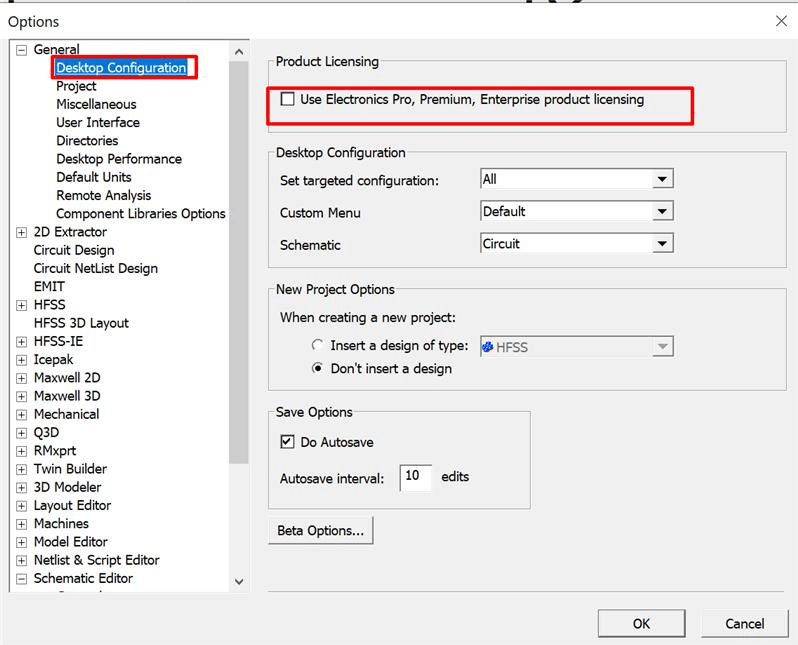

The resolution is to activate the correct product licensing which are not activated by default. See the Pix on how to activate the licensingsee less.

by

Licensing Errors for ANSYS IcePak Solver

If you are encountering issues like the one below.

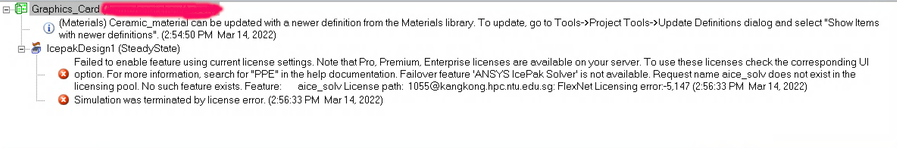

"If you have this error "Failed to enable features using current license settings. Note that Pro, Premium, Enterprise licenses are available on your server. To use these licenses check the corresponding option. For more information, search "PPE" in the help documentation. Failover feature "ANSYS IcePak Solver" is not available. Request name aice_solv does not exist in the....."

by

Software Rendering Mode for Fluent Launcher

When running Fluent from inside ANSYS Workbench on Linux. Hardware graphics rendering can fail and the Fluent application failed to start. This error can sometimes be prevented by switching to the software rendering mode. There are 2 approaches

Before Running Workbench, you may want to put this in your BASH Shell

% export HOOPS_PICTURE=x11/lin

In C Shell

% setenv HOOPS_PICTURE x11/lin

If you are using Fluent Launcher

Steps:

Open a Fluent set of cells
Right Click the Fluent setup cell and choose, edit
In the resulting Fluent launcher, choose +, Show More Options
Select the Environment tab
Add the following entry
HOOPS_PICTURE=x11/lin

by

Licensing error while opening ANSYS Fluent Meshing

The usage of Fluent was smooth. But when I launched the Fluent (Fluent with Meshing)

I’ve got this error. “No license is available at this time”

Taking a look at ANSYS Learning Forum, According to the forum (Licensing error while opening ANSYS Mechanical) “That error message would appear when there is another operation going on that won’t allow the license to be shared , such as meshing or solving, etc.”

To resolve the issue:

  1. Execute the command “/usr/local/ansys_inc/v195/commonfiles/tools/linx64/ansyslm_relutil -userprefs

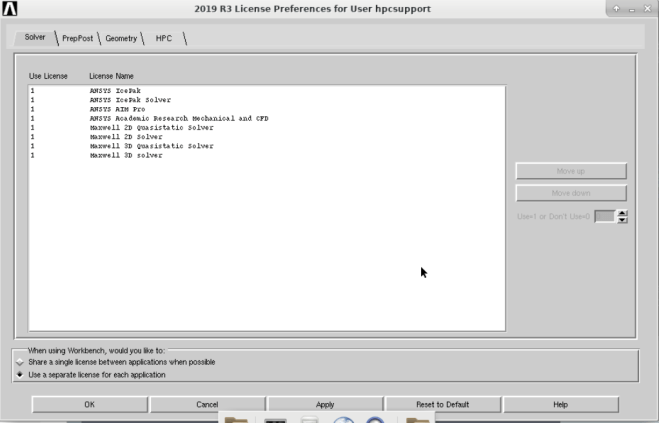

You should see the dialog box.

You have to go to the bottom of the dialog box “When using Workbench, would you like to”, Use a separate license for each application

Finally, close the application and restart. The issue should go away.

References:

  1. Licensing error while opening ANSYS Mechanical
by

MPI related Errors for ANSYS-20.1

One of my users was facing the issues when running ANSYS-20.1 Fluent

Error: eval: unbound variable
Error Object: c-flush
...
...
...
libibverbs: Warning: no userspace device-specific driver found for /sys/class/infiniband_verbs/uverbs1
libibverbs: Warning: no userspace device-specific driver found for /sys/class/infiniband_verbs/uverbs2
libibverbs: Warning: no userspace device-specific driver found for /sys/class/infiniband_verbs/uverbs1
libibverbs: Warning: no userspace device-specific driver found for /sys/class/infiniband_verbs/uverbs2
libibverbs: Warning: no userspace device-specific driver found for /sys/class/infiniband_verbs/uverbs1
fluent_mpi.20.1.0: Rank 0:110: MPI_Init: ibv_create_qp(left ring) failed
fluent_mpi.20.1.0: Rank 0:110: MPI_Init: probably you need to increase pinnable memory in /etc/security/limits.conf
fluent_mpi.20.1.0: Rank 0:110: MPI_Init: ibv_ring_createqp() failed
fluent_mpi.20.1.0: Rank 0:110: MPI_Init: Can't initialize RDMA device
fluent_mpi.20.1.0: Rank 0:110: MPI_Init: Internal Error: Cannot initialize RDMA protocol
...
...
...

There were a few steps that we took to resolve the issues. Do look at the generated logs which will give lots of information. If you are using the PBS-Professional. your fluent script may look like this.

fluent 3ddp -g -t$nprocs -mpi=ibmmpi -cflush -ssh -lsf -cnf=$PBS_NODEFILE -pinfiniband -nmon -i $inputfile >& $PBS_JOBID.log 2>&1
  • Do note that “-cflush” and that it should be placed after the -mpi flag. From our observation, if the -cflush is placed before -mpi, it seems to initiate the flush, but another error would be generated.
  • Make sure you choose the right mpi parameter.



by

Fixing can’t load screen14 issues for ANSYS 2020-R1

I was having this strange issue when running ANSYS ICEM

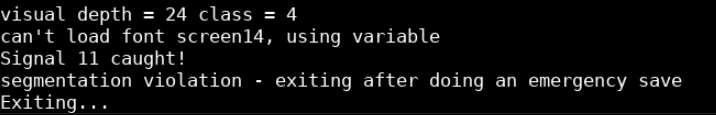

"Fixing can't load screen14 issues, using variable
Signal 11 caught!
Segmentation violation - exiting after doing an emergency save"

The Issue can easily resolved. It is due to errors due to missing fonts libraries

# yum install xorg-x11-fonts-*
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirror.newmediaexpress.com
* epel: download.nus.edu.sg
* extras: mirror.newmediaexpress.com
* updates: mirror.newmediaexpress.com
Package xorg-x11-fonts-ISO8859-1-75dpi-7.5-9.el7.noarch already installed and latest version
Package xorg-x11-fonts-Type1-7.5-9.el7.noarch already installed and latest version
Resolving Dependencies
--> Running transaction check
---> Package xorg-x11-fonts-100dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-75dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-1-100dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-14-100dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-14-75dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-15-100dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-15-75dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-2-100dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-2-75dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-9-100dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ISO8859-9-75dpi.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-cyrillic.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-ethiopic.noarch 0:7.5-9.el7 will be installed
---> Package xorg-x11-fonts-misc.noarch 0:7.5-9.el7 will be installed
--> Finished Dependency Resolution

The Issue should be resolved.
