Displaying node level source summary

P1: To view Node Level Source Summary like bhosts in Platform LSF

# pbsnodes -aSn
n003 job-busy 1 1 0 377gb/377gb 0/32 0/0 0/0 14654
n004 job-busy 1 1 0 377gb/377gb 0/32 0/0 0/0 14661
n005 free 9 9 0 346gb/346gb 21/32 0/0 0/0 14570,14571,14678,14443,14608,14609,14444,14678,14679
n006 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n008 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n009 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n010 job-busy 1 1 0 377gb/377gb 0/32 0/0 0/0 14665
n012 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n013 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n014 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n015 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n007 free 0 0 0 377gb/377gb 32/32 0/0 0/0 --
n016 job-busy 1 1 0 77gb/377gb 0/32 0/0 0/0 14681
n017 job-busy 1 1 0 377gb/377gb 0/32 0/0 0/0 14676
n018 job-busy 1 1 0 377gb/377gb 0/32 0/0 0/0 14677

P2: To View Node Level Summary with explanation via qstat

# qstat -ans | less
Req'd Req'd Elap
Job ID Username Queue Jobname SessID NDS TSK Memory Time S Time
--------------- -------- -------- ---------- ------ --- --- ------ ----- - -----
40043.hpc-mn1 chunfei0 iworkq Ansys 144867 1 1 256mb 720:0 R 669:1
r001/11
Job run at Mon Oct 21 at 15:30 on (r001:ncpus=1:mem=262144kb:ngpus=1)
40092.hpc-mn1 e190013 iworkq Ansys 155351 1 1 256mb 720:0 R 667:0
r001/13
Job run at Mon Oct 21 at 17:41 on (r001:ncpus=1:mem=262144kb:ngpus=1)
42557.mn1 i180004 q32 LAMMPS -- 1 48 -- 72:00 Q --
--
Not Running: Insufficient amount of resource: ncpus (R: 48 A: 14 T: 2272)
42941.mn1 hpcsuppo iworkq Ansys 255754 1 1 256mb 720:0 R 290:2
hpc-r001/4
Job run at Wed Nov 06 at 10:18 on (r001:ncpus=1:mem=262144kb:ngpus=1)
Req'd Req'd Elap
Job ID Username Queue Jobname SessID NDS TSK Memory Time S Time
--------------- -------- -------- ---------- ------ --- --- ------ ----- - -----
40043.mn1 chunfei0 iworkq Ansys 144867 1 1 256mb 720:0 R 669:1
hpc-r001/11
Job run at Mon Oct 21 at 15:30 on (r001:ncpus=1:mem=262144kb:ngpus=1)
40092.hpc-mn1 e190013 iworkq Ansys 155351 1 1 256mb 720:0 R 667:0
hpc-r001/13
Job run at Mon Oct 21 at 17:41 on r001:ncpus=1:mem=262144kb:ngpus=1)
42557.hpc-mn1 i180004 q32 LAMMPS -- 1 48 -- 72:00 Q --
--
Not Running: Insufficient amount of resource: ncpus (R: 48 A: 14 T: 2272)
42941.mn1 hpcsuppo iworkq Ansys 255754 1 1 256mb 720:0 R 290:2
hpc-r001/4
Job run at Wed Nov 06 at 10:18 on (r001:ncpus=1:mem=262144kb:ngpus=1)
....
....
....

Clearing the password cache for Altair Display Manager

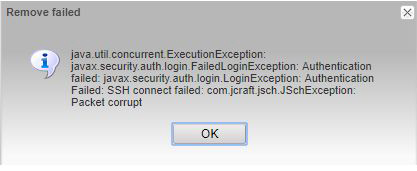

If you are using Altair Display Manager and you encounter this Error Message (java.util.concurrent.ExecutionException) below



Resolution Step 1:

Click the Icon at the top left hand corner of the browser



Resolution Step 2:

Click the Compute Manager Icon



Resolution Step 3:

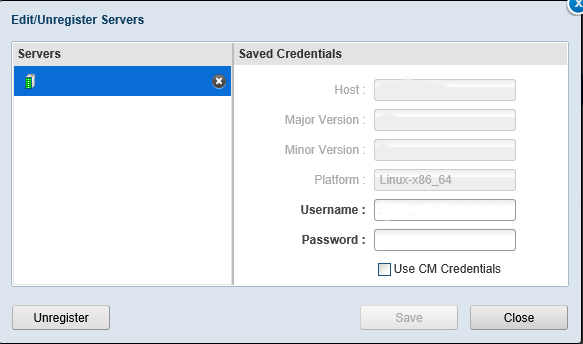

On the Top-Right Corner of the Browser, click the setting icon and “Edit/Unregister”



Resolution Step 4:

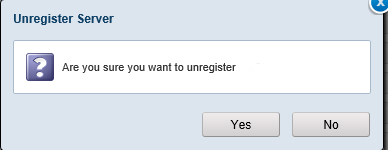

Click the bottom left hand corner and click “Unregister”

Click “Yes”

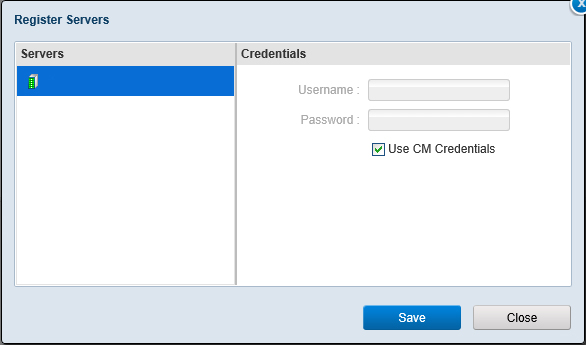

Resolution Step 5:

Click “Save”

Log out and Login again

Mellanox Introduces Advanced Network Telemetry Technology

Mellanox today announced an advanced Network Telemetry technology that provides visibility into Data Plane Anomalies – for public cloud, private cloud and enterprise computing.

What Just Happened (WJH) is a new intelligent monitoring technology that goes well beyond conventional streaming telemetry and Inband Network Telemetry (INT) offerings. These conventional telemetry offerings generate enormous amounts of data that is mined from network port counters and statistical packet sampling and hop-by-hop INT data. This type of telemetry data lacks any context or actionable details on abnormal network behavior, forcing the network admin or monitoring tool to perform time consuming analysis to find the root cause of network issues. WJH event-based telemetry delivers direct and actionable information and thus eliminates the guesswork from network troubleshooting.

In Mellanox based switch systems, WJH inspects packets across all ports at line-rate, at speeds that would overwhelm traditional Deep Packet Inspection solutions. WJH then identifies anomalous behavior, consolidates this into concise, specific, and actionable data that enables rapid remediation and recovery of cloud applications and critical business operations.

http://www.mellanox.com/related-docs/solutions/SB_Mellanox_WJH.pdf?ls=pr&lsd=190513-WJH-1
