Reverting back to CMake-3.9.6

When I was compiling CMAKE-3.11.4 with GNU-5.4.0, we encountered the error

"The C++ compiler does not support C++11 (e.g. std::unique_ptr)"

This was rather complex to solve. I believe if I upgrade my GNU Compilers, it might work. Somehow at GNU 5.4, it does not recognize the C++11 support.

But when I downgraded to Cmake-3.9.6, it works immediately without issues. Do look at https://cmake.org/files/v3.9/

# cd $CMAKE_HOME
#./bootstrap
# gmake

Compiling with NWChem-6.8 with Intel MPI 2018u3

Here is a write-up of my computing platform and applications:

  1. NWChem 6.8 (14 December 2017)
  2. Intel Compilers, IMPI and MKL (2018 U3)
  3. Infiniband Interconnect (OFED-4.3-1.0.1)
  4. CentOS 7.4 (x86_64)

Step 1: First thing first, source the intel components setting from

source /usr/local/intel/2018u3/bin/compilervars.sh intel64
source /usr/local/intel/2018u3/impi/2018.3.222/bin64/mpivars.sh intel64
source /usr/local/intel/2018u3/mkl/bin/mklvars.sh intel64
source /usr/local/intel/2018u3/parallel_studio_xe_2018/bin/psxevars.sh intel64
export NWCHEM_TOP=/usr/local/software/nwchem-6.8/nwchem-6.8
export NWCHEM_MODULES=pnnl
export NWCHEM_TARGET=LINUX64
export NWCHEM_LONG_PATHS=y
export PYTHONHOME=/usr
export PYTHONVERSION=2.7
export PYTHONLIBTYPE=so
export USE_PYTHON64=y
export USE_NOFSCHECK=y
export TCGRSH=/usr/bin/ssh
export LARGE_FILES=y
export USE_MPI=y
export USE_MPIF=y
export USE_MPIF4=y
export MPI_LOC="/usr/local/intel/2018u3/impi/2018.3.222/intel64"
export MPI_INCLUDE="/usr/local/intel/2018u3/impi/2018.3.222/intel64/include/gfortran/5.1.0 -I/usr/local/intel/2018u3/impi/2018.3.222/intel64/include"
export MPI_LIB="/usr/local/intel/2018u3/impi/2018.3.222/intel64/lib/release_mt -L/usr/local/intel/2018u3/impi/2018.3.222/intel64/lib"
export LIBMPI="-lmpifort -lmpi -lmpigi -ldl -lrt -lpthread"
export USE_OPENMP=y
export MKLROOT=/usr/local/intel/2018u3/mkl
export MKLLIB="${MKLROOT}/lib/intel64"
export MKLINC="${MKLROOT}/include"
export HAS_BLAS=y
export BLAS_SIZE=8
export BLASOPT="-L${MKLROOT}/lib/intel64 -lmkl_intel_ilp64 -lmkl_intel_thread -lmkl_core -liomp5 -lpthread -lm -ldl"
export LAPACK_SIZE=8
export LAPACK_LIB="$BLASOPT"
export LAPACK_LIBS="$BLASOPT"
export LAPACKOPT="$BLASOPT"
export USE_SCALAPACK=y
export SCALAPACK_SIZE=8
export SCALAPACK="-L${MKLROOT}/lib/intel64 -lmkl_scalapack_ilp64 -lmkl_intel_ilp64 -lmkl_intel_thread -lmkl_core -lmkl_blacs_intelmpi_ilp64 -liomp5 -lpthread -lm -ldl"
export SCALAPACK_LIB="$SCALAPACK"
export SCALAPACK_LIBS="$SCALAPACK"
export CC=icc
export FC=ifort
export USE_64TO32=y

cd $NWCHEM_TOP/src
#make realclean
make nwchem_config
make 64_to_32
make CC=icc FC=ifort FOPTIMIZE=-O3
cd $NWCHEM_TOP/src/tools
make CC=icc FC=ifort FOPTIMIZE=-O3 version
make CC=icc FC=ifort FOPTIMIZE=-O3
cd $NWCHEM_TOP/src
make CC=icc FC=ifort FOPTIMIZE=-O3 link

General Site Installation

Determine the local storage path for the install files. (e.g., /usr/local/NWChem).
Make directories

Determine the local storage path for the install files. (e.g., /usr/local/NWChem).
Make directories

# mkdir /usr/local/nwchem-6.8
# mkdir /usr/local/nwchem-6.8/bin
# mkdir /usr/local/nwchem-6.8/data

Copy binary

# cp $NWCHEM_TOP/bin/ /usr/local/nwchem-6.8/bin
# cd /usr/local/nwchem-6.8/bin
# chmod 755 nwchem

Copy libraries

# cd $NWCHEM_TOP/src/basis
# cp -r libraries /usr/local/nwchem-6.8/data

# cd $NWCHEM_TOP/src/
# cp -r data /usr/local/nwchem-6.8

# cd $NWCHEM_TOP/src/nwpw
# cp -r libraryps /usr/local/nwchem-6.8/data

The Final Lap (From Compiling NWChem)

Each user will need a .nwchemrc file to point to these default data files. A global one could be put in /usr/local/nwchem-6.8/data and a symbolic link made in each users $HOME directory is probably the best plan for new installs. Users would have to issue the following command prior to using NWChem: ln -s /usr/local/nwchem-6.8/data/default.nwchemrc $HOME/.nwchemrc

Contents of the default.nwchemrc file based on the above information should be:

nwchem_basis_library /usr/local/nwchem-6.8/data/libraries/
nwchem_nwpw_library /usr/local/nwchem-6.8/data/libraryps/
ffield amber
amber_1 /usr/local/nwchem-6.8/data/amber_s/
amber_2 /usr/local/nwchem-6.8/data/amber_q/
amber_3 /usr/local/nwchem-6.8/data/amber_x/
amber_4 /usr/local/nwchem-6.8/data/amber_u/
spce    /usr/local/nwchem-6.8/data/solvents/spce.rst
charmm_s /usr/local/nwchem-6.8/data/charmm_s/
charmm_x /usr/local/nwchem-6.8/data/charmm_x/

References:

  1. Compiling NWCHEM

Adding New Nodes under PBS Professional

Step 1: Copy /etc/pbs.conf from any of the existing node to /etc of the new node

# scp -v /etc/pbs.conf root@remotenode:/etc

Step 2: Install Pbs execution rpm on the new node

# rpm -Uvh /usr/local/software/admin/altair/PBSPro_14.2.5/pbspro-execution-14.2.5.20180221140231-0.el7.x86_64.rpm

Step 3: Copy /var/spool/pbs/mom_priv/config from any existing node to /var/spool/pbs/mom_priv of new node

# scp -v /var/spool/pbs/mom_priv/config root@remotenode:/var/spool/pbs/mom_priv/

Step 4. “service pbs restart “ on the new node

# service pbs restart

Step 5. Create the node on PBS-Server

# qmgr -c “create node node-name"

Using firewall-cmd in CentOS 7

Note: Do note that the default zone is “public”

Section 1: Checking Zones and Prerequisites

Option 1: Check State of Firewalld

# firewall-cmd --state
Running

Option 2: Check Default Zone

# firewall-cmd --get-default-zone
public

Option 3: Check Active Zones

# firewall-cmd --get-active-zones
public: etho eth1

Option 4: Get Zones

# firewall-cmd --get-zones
block dmz drop external home internal public trusted work

Section 2: Selecting Zones for your Interfaces

Option 1: Change Interfaces

# firewall-cmd --permanent --zone=trusted --change-interface=eth0
success
# firewall-cmd --reload

Option 2: Verify the Zone has been changed

firewall-cmd --get-active-zones
trusted
interfaces: eth0
public
interfaces: eth1

Section 3: Editing Firewall-CMD Rules

Option 1: Opening Ports (Single)

# firewall-cmd --permanent --zone=public --add-port=80/tcp
success
# firewall-cmd --reload

Option 2: Opening Ports (Range)

# firewall-cmd --permanent --zone=public --add-port=80-90/tcp
success
# firewall-cmd --reload

Option 3: List Ports

#  firewall-cmd --zone=public --list-all
public (active)
  target: default
  icmp-block-inversion: no
  interfaces: enp6s0f0 eno2 ib1
  sources:
  services: ssh dhcpv6-client
  ports: 22/tcp 5053/tcp 57889/tcp
  protocols:
  masquerade: no
  forward-ports:
  source-ports:
  icmp-blocks:
  rich rules:

Option 4: Remove Port

# firewall-cmd --permanent --zone=public --remove-port=80/tcp
success
# firewall-cmd --reload

Option 5: Adding Service

Checking Services

# firewall-cmd --get-services
RH-Satellite-6 amanda-client amanda-k5-client bacula bacula-client bitcoin bitcoin-rpc bitcoin-testnet bitcoin-testnet-rpc ceph ceph-mon cfengine condor-collector ctdb dhcp dhcpv6 dhcpv6-client dns docker-registry dropbox-lansync elasticsearch freeipa-ldap freeipa-ldaps freeipa-replication freeipa-trust ftp ganglia-client ganglia-master high-availability http https imap imaps ipp ipp-client ipsec iscsi-target kadmin kerberos kibana klogin kpasswd kshell ldap ldaps libvirt libvirt-tls managesieve mdns mosh mountd ms-wbt mssql mysql nfs nfs3 nrpe ntp openvpn ovirt-imageio ovirt-storageconsole ovirt-vmconsole pmcd pmproxy pmwebapi pmwebapis pop3 pop3s postgresql privoxy proxy-dhcp ptp pulseaudio puppetmaster quassel radius rpc-bind rsh rsyncd samba samba-client sane sip sips smtp smtp-submission smtps snmp snmptrap spideroak-lansync squid ssh synergy syslog syslog-tls telnet tftp tftp-client tinc tor-socks transmission-client vdsm vnc-server wbem-https xmpp-bosh xmpp-client xmpp-local xmpp-server

Finally, Add Service

# firewall-cmd --permanent --zone=public --add-service=http
success
# firewall-cmd --reload

References:

  1. How To Set Up a Firewall Using FirewallD on CentOS 7

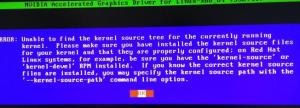

Nvidia Drivers Issues – Unable to find the kernel source tree

Step 1: Check current kernel version

# uname -r
3.10.0-862.14.4.el7.x86_64

Step 2: Check installed kernel version

# yum info kernel
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirror.0x.sg
* elrepo: elrepo.mirror.angkasa.id
* epel: sg.fedora.ipserverone.com
* extras: mirror.0x.sg
* updates: mirror.0x.sg
Installed Packages
Name : kernel
Arch : x86_64
Version : 3.10.0
Release : 693.el7
Size : 59 M
Repo : installed
From repo : anaconda
Summary : The Linux kernel
URL : http://www.kernel.org/
License : GPLv2
Description : The kernel package contains the Linux kernel (vmlinuz), the core of any
: Linux operating system. The kernel handles the basic functions
: of the operating system: memory allocation, process allocation, device
: input and output, etc.

Name : kernel
Arch : x86_64
Version : 3.10.0
Release : 862.14.4.el7
Size : 62 M
Repo : installed
From repo : updates
Summary : The Linux kernel
URL : http://www.kernel.org/
License : GPLv2
Description : The kernel package contains the Linux kernel (vmlinuz), the core of any
: Linux operating system. The kernel handles the basic functions
: of the operating system: memory allocation, process allocation, device
: input and output, etc.

Step 3: Install Kernel-Devel and Kernel-Headers

# yum install kernel-devel kernel-headers -y
# yum info kernel-devel kernel-headers

Step 4: Check Kernel-Devel. Make sure the version is in-sync

# yum info kernel-devel
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirror.0x.sg
* elrepo: elrepo.mirror.angkasa.id
* epel: sg.fedora.ipserverone.com
* extras: mirror.0x.sg
* updates: mirror.0x.sg
Installed Packages
Name : kernel-devel
Arch : x86_64
Version : 3.10.0
Release : 862.14.4.el7
Size : 37 M
Repo : installed
From repo : updates
Summary : Development package for building kernel modules to match the kernel
URL : http://www.kernel.org/
License : GPLv2
Description : This package provides kernel headers and makefiles sufficient to build modules
: against the kernel package.

Step 5: Check Kernel-Headers. Make sure the version is in-sync

# yum info kernel-headers
Loaded plugins: fastestmirror, langpacks
Loading mirror speeds from cached hostfile
* base: mirror.0x.sg
* elrepo: elrepo.mirror.angkasa.id
* epel: sg.fedora.ipserverone.com
* extras: mirror.0x.sg
* updates: mirror.0x.sg
Installed Packages
Name : kernel-headers
Arch : x86_64
Version : 3.10.0
Release : 862.14.4.el7
Size : 3.6 M
Repo : installed
From repo : updates
Summary : Header files for the Linux kernel for use by glibc
URL : http://www.kernel.org/
License : GPLv2
Description : Kernel-headers includes the C header files that specify the interface
: between the Linux kernel and userspace libraries and programs. The
: header files define structures and constants that are needed for
: building most standard programs and are also needed for rebuilding the
: glibc package.

Technical Blogs on IBM Spectrum Scale v5.0.2.0

  1. How NFS exports became more dynamic with Spectrum Scale 5.0.2
    https://developer.ibm.com/storage/2018/10/02/nfs-exports-became-dynamic-spectrum-scale-5-0-2/
  2. HPC storage on AWS (IBM Spectrum Scale)
    https://developer.ibm.com/storage/2018/10/02/hpc-storage-aws-ibm-spectrum-scale/
  3. Upgrade with Excluding the node(s) using Install-toolkit
    https://developer.ibm.com/storage/2018/09/30/upgrade-excluding-nodes-using-install-toolkit/
  4. Offline upgrade using Install-toolkit
    https://developer.ibm.com/storage/2018/09/30/offline-upgrade-using-install-toolkit/
  5. IBM Spectrum Scale for Linux on IBM Z ? What’s new in IBM Spectrum Scale 5.0.2
    https://developer.ibm.com/storage/2018/09/21/ibm-spectrum-scale-for-linux-on-ibm-z-whats-new-in-ibm-spectrum-scale-5-0-2/
  6. What’s New in IBM Spectrum Scale 5.0.2
    https://developer.ibm.com/storage/2018/09/15/whats-new-ibm-spectrum-scale-5-0-2/
  7. Starting IBM Spectrum Scale 5.0.2 release, the installation toolkit supports upgrade rerun if fresh upgrade fails.
    https://developer.ibm.com/storage/2018/09/15/starting-ibm-spectrum-scale-5-0-2-release-installation-toolkit-supports-upgrade-rerun-fresh-upgrade-fails/
  8. IBM Spectrum Scale installation toolkit enhancements over releases 5.0.2.0
    https://developer.ibm.com/storage/2018/09/15/ibm-spectrum-scale-installation-toolkit-enhancements-releases-5-0-2-0/
  9. Announcing HDP 3.0 support with IBM Spectrum Scale
    https://developer.ibm.com/storage/2018/08/31/announcing-hdp-3-0-support-ibm-spectrum-scale/
  10. IBM Spectrum Scale Tuning Overview for Hadoop Workload
    https://developer.ibm.com/storage/2018/08/20/ibm-spectrum-scale-tuning-overview-hadoop-workload/
  11. Making the Most of Multicloud Storage
    https://developer.ibm.com/storage/2018/08/13/making-multicloud-storage/
  12. Disaster Recovery for Transparent Cloud Tiering using SOBAR
    https://developer.ibm.com/storage/2018/08/13/disaster-recovery-transparent-cloud-tiering-using-sobar/
  13. Your Optimal Choice of AI Storage for Today and Tomorrow
    https://developer.ibm.com/storage/2018/08/10/spectrum-scale-ai-workloads/
  14. Analyze IBM Spectrum Scale File Access Audit with ELK Stack
    https://developer.ibm.com/storage/2018/07/30/analyze-ibm-spectrum-scale-file-access-audit-elk-stack/
  15. Mellanox SX1710 40G switch MLAG configuration for IBM ESS
    https://developer.ibm.com/storage/2018/07/12/mellanox-sx1710-40g-switcher-mlag-configuration/
  16. Protocol Problem Determination Guide for IBM Spectrum Scale SMB and NFS Access issues
    https://developer.ibm.com/storage/2018/07/10/protocol-problem-determination-guide-ibm-spectrum-scale-smb-nfs-access-issues/
  17. Access Control in IBM Spectrum Scale Object
    https://developer.ibm.com/storage/2018/07/06/access-control-ibm-spectrum-scale-object/
  18. IBM Spectrum Scale HDFS Transparency Docker support
    https://developer.ibm.com/storage/2018/07/06/ibm-spectrum-scale-hdfs-transparency-docker-support/
  19. Protocol Problem Determination Guide for IBM Spectrum Scale Log Collection
    https://developer.ibm.com/storage/2018/07/04/protocol-problem-determination-guide-ibm-spectrum-scale-log-collection/
