Compiling VASP 5.3.5 with OpenMPI 1.6.5 and Intel 12.1.5

Do take a look Compiling VASP 5.3.3 with OpenMPI 1.6.5 and Intel 12.1.5 for the step by step approach to compiling. Instead I will put up my make file here for your evaluation



Step 1: Makefile for vasp.5.lib

.SUFFIXES: .inc .f .F
#-----------------------------------------------------------------------
# Makefile for LINUX NAG f90
#-----------------------------------------------------------------------
# fortran compiler
FC=ifort

# C-preprocessor
#CPP = /usr/lib/gcc-lib/i486-linux/2.7.2/cpp -P -C $*.F >$*.f
CPP = gcc -E -P -C -DLONGCHAR $*.F >$*.f

CFLAGS = -O
FFLAGS = -Os -FI
FREE = -FR

DOBJ = preclib.o timing_.o derrf_.o dclock_.o diolib.o dlexlib.o drdatab.o

#-----------------------------------------------------------------------
# general rules
#-----------------------------------------------------------------------

libdmy.a: $(DOBJ) linpack_double.o
-rm libdmy.a
ar vq libdmy.a $(DOBJ)

linpack_double.o: linpack_double.f
$(FC) $(FFLAGS) $(NOFREE) -c linpack_double.f

# files which do not require autodouble
lapack_double.o: lapack_double.f
$(FC) $(FFLAGS) $(NOFREE) -c lapack_double.f
lapack_single.o: lapack_single.f
$(FC) $(FFLAGS) $(NOFREE) -c lapack_single.f
#lapack_cray.o: lapack_cray.f
# $(FC) $(FFLAGS) $(NOFREE) -c lapack_cray.f

.c.o:
$(CC) $(CFLAGS) -c $*.c
.F.o:
$(CPP)
$(FC) $(FFLAGS) $(FREE) $(INCS) -c $*.f
.F.f:
$(CPP)
.f.o:
$(FC) $(FFLAGS) $(FREE) $(INCS) -c $*.f



Step 2. Makefile for vasp.5.3.5

.SUFFIXES: .inc .f .f90 .F
#-----------------------------------------------------------------------
# Makefile for Intel Fortran compiler for Pentium/Athlon/Opteron
# based systems
# we recommend this makefile for both Intel as well as AMD systems
# for AMD based systems appropriate BLAS (libgoto) and fftw libraries are
# however mandatory (whereas they are optional for Intel platforms)
# For Athlon we recommend
#  ) to link against libgoto (and mkl as a backup for missing routines)
#  ) odd enough link in libfftw3xf_intel.a (fftw interface for mkl)
# feedback is greatly appreciated
#
# The makefile was tested only under Linux on Intel and AMD platforms
# the following compiler versions have been tested:
#  - ifc.7.1  works stable somewhat slow but reliably
#  - ifc.8.1  fails to compile the code properly
#  - ifc.9.1  recommended (both for 32 and 64 bit)
#  - ifc.10.1 partially recommended (both for 32 and 64 bit)
#             tested build 20080312 Package ID: l_fc_p_10.1.015
#             the gamma only mpi version can not be compiles
#             using ifc.10.1
#  - ifc.11.1 partially recommended (some problems with Gamma only and intel fftw)
#             Build 20090630 Package ID: l_cprof_p_11.1.046
#  - ifort.12.1 strongly recommended (we use this to compile vasp)
#             Version 12.1.5.339 Build 20120612
#
# it might be required to change some of library path ways, since
# LINUX installations vary a lot
#
# Hence check ***ALL*** options in this makefile very carefully
#-----------------------------------------------------------------------
#
# BLAS must be installed on the machine
# there are several options:
# 1) very slow but works:
#   retrieve the lapackage from ftp.netlib.org
#   and compile the blas routines (BLAS/SRC directory)
#   please use g77 or f77 for the compilation. When I tried to
#   use pgf77 or pgf90 for BLAS, VASP hang up when calling
#   ZHEEV  (however this was with lapack 1.1 now I use lapack 2.0)
# 2) more desirable: get an optimized BLAS
#
# the two most reliable packages around are presently:
# 2a) Intels own optimised BLAS (PIII, P4, PD, PC2, Itanium)
#     http://developer.intel.com/software/products/mkl/
#   this is really excellent, if you use Intel CPU's
#
# 2b) probably fastest SSE2 (4 GFlops on P4, 2.53 GHz, 16 GFlops PD,
#     around 30 GFlops on Quad core)
#   Kazushige Goto's BLAS
#   http://www.cs.utexas.edu/users/kgoto/signup_first.html
#   http://www.tacc.utexas.edu/resources/software/
#
#-----------------------------------------------------------------------

# all CPP processed fortran files have the extension .f90
SUFFIX=.f90

#-----------------------------------------------------------------------
# fortran compiler and linker
#-----------------------------------------------------------------------
FC=mpif90
# fortran linker
FCL=$(FC) -mkl


#-----------------------------------------------------------------------
# whereis CPP ?? (I need CPP, can't use gcc with proper options)
# that's the location of gcc for SUSE 5.3
#
#  CPP_   =  /usr/lib/gcc-lib/i486-linux/2.7.2/cpp -P -C
#
# that's probably the right line for some Red Hat distribution:
#
#  CPP_   =  /usr/lib/gcc-lib/i386-redhat-linux/2.7.2.3/cpp -P -C
#
#  SUSE X.X, maybe some Red Hat distributions:

CPP_ =  ./preprocess <$*.F | /usr/bin/cpp -P -C -traditional >$*$(SUFFIX)

# this release should be fpp clean
# we now recommend fpp as preprocessor
# if this fails go back to cpp
CPP_=fpp -f_com=no -free -w0 $*.F $*$(SUFFIX)

#-----------------------------------------------------------------------
# possible options for CPP:
# NGXhalf             charge density   reduced in X direction
# wNGXhalf            gamma point only reduced in X direction
# avoidalloc          avoid ALLOCATE if possible
# PGF90               work around some for some PGF90 / IFC bugs
# CACHE_SIZE          1000 for PII,PIII, 5000 for Athlon, 8000-12000 P4, PD
# RPROMU_DGEMV        use DGEMV instead of DGEMM in RPRO (depends on used BLAS)
# RACCMU_DGEMV        use DGEMV instead of DGEMM in RACC (depends on used BLAS)
# tbdyn                 MD package of Tomas  Bucko
#-----------------------------------------------------------------------

CPP     = $(CPP_)  -DHOST=\"LinuxIFC\" \
-DCACHE_SIZE=12000 -DPGF90 -Davoidalloc -DNGXhalf \
#          -DRPROMU_DGEMV  -DRACCMU_DGEMV

#-----------------------------------------------------------------------
# general fortran flags  (there must a trailing blank on this line)
# byterecl is strictly required for ifc, since otherwise
# the WAVECAR file becomes huge
#-----------------------------------------------------------------------

#FFLAGS =  -FR -names lowercase -assume byterecl -I$(MKLROOT)/include/fftw -xAVX
FFLAGS =  -free -names lowercase -assume byterecl
#-----------------------------------------------------------------------
# optimization
# we have tested whether higher optimisation improves performance
# -axK  SSE1 optimization,  but also generate code executable on all mach.
#       xK improves performance somewhat on XP, and a is required in order
#       to run the code on older Athlons as well
# -xW   SSE2 optimization
# -axW  SSE2 optimization,  but also generate code executable on all mach.
# -tpp6 P3 optimization
# -tpp7 P4 optimization
#-----------------------------------------------------------------------

# ifc.9.1, ifc.10.1 recommended
OFLAG=-O2 -ip
#OFLAG=-O2 -ip

OFLAG_HIGH = $(OFLAG)
OBJ_HIGH =
OBJ_NOOPT =
DEBUG  = -FR -O0
INLINE = $(OFLAG)

#-----------------------------------------------------------------------
# the following lines specify the position of BLAS  and LAPACK
# we recommend to use mkl, that is simple and most likely
# fastest in Intel based machines
#-----------------------------------------------------------------------

# mkl path for ifc 11 compiler
#MKL_PATH=$(MKLROOT)/lib/e

# mkl path for ifc 12 compiler
MKL_PATH=$(MKLROOT)/lib/intel64

MKL_FFTW_PATH=$(MKLROOT)/interfaces/fftw3xf/

# BLAS
# setting -DRPROMU_DGEMV  -DRACCMU_DGEMV in the CPP lines usually speeds up program execution
# BLAS= -Wl,--start-group $(MKL_PATH)/libmkl_intel_lp64.a $(MKL_PATH)/libmkl_intel_thread.a $(MKL_PATH)/libmkl_core.a -Wl,--end-group -lguide
# faster linking and available from at least version 11
#BLAS= -lguide  -mkl
BLAS= -mkl=sequential


# LAPACK, use vasp.5.lib/lapack_double

#LAPACK= ../vasp.5.lib/lapack_double.o

# LAPACK from mkl, usually faster and contains scaLAPACK as well
LAPACK =
#LAPACK= $(MKL_PATH)/libmkl_intel_lp64.a

# here a tricky version, link in libgoto and use mkl as a backup
# also needs a special line for LAPACK
# this is the best thing you can do on AMD based systems !!!!!!

#BLAS =  -Wl,--start-group /opt/libs/libgoto/libgoto.so $(MKL_PATH)/libmkl_intel_thread.a $(MKL_PATH)/libmkl_core.a -Wl,--end-group  -liomp5
#LAPACK= /opt/libs/libgoto/libgoto.so $(MKL_PATH)/libmkl_intel_lp64.a

#-----------------------------------------------------------------------

LIB  = -L../vasp.5.lib -ldmy \
../vasp.5.lib/linpack_double.o $(LAPACK) \
$(BLAS)

# options for linking, nothing is required (usually)
LINK =

#-----------------------------------------------------------------------
# fft libraries:
# VASP.5.2 can use fftw.3.1.X (http://www.fftw.org)
# since this version is faster on P4 machines, we recommend to use it
#-----------------------------------------------------------------------

FFT3D   = fft3dfurth.o fft3dlib.o

# alternatively: fftw.3.1.X is slighly faster and should be used if available
#FFT3D   = fftw3d.o fft3dlib.o   /opt/libs/fftw-3.1.2/lib/libfftw3.a

# you may also try to use the fftw wrapper to mkl (but the path might vary a lot)
# it seems this is best for AMD based systems
#FFT3D   = fftw3d.o fft3dlib.o $(MKL_FFTW_PATH)/libfftw3xf_intel.a
#INCS = -I$(MKLROOT)/include/fftw

#=======================================================================
# MPI section, uncomment the following lines until
#    general  rules and compile lines
# presently we recommend OPENMPI, since it seems to offer better
# performance than lam or mpich
#
# !!! Please do not send me any queries on how to install MPI, I will
# certainly not answer them !!!!
#=======================================================================
#-----------------------------------------------------------------------
# fortran linker for mpi
#-----------------------------------------------------------------------

#FC=mpif90
#FCL=$(FC)

#-----------------------------------------------------------------------
# additional options for CPP in parallel version (see also above):
# NGZhalf             charge density   reduced in Z direction
# wNGZhalf            gamma point only reduced in Z direction
# scaLAPACK           use scaLAPACK (recommended if mkl is available)
# avoidalloc          avoid ALLOCATE if possible
# PGF90               work around some for some PGF90 / IFC bugs
# CACHE_SIZE          1000 for PII,PIII, 5000 for Athlon, 8000-12000 P4, PD
# RPROMU_DGEMV        use DGEMV instead of DGEMM in RPRO (depends on used BLAS)
# RACCMU_DGEMV        use DGEMV instead of DGEMM in RACC (depends on used BLAS)
# tbdyn                 MD package of Tomas  Bucko
#-----------------------------------------------------------------------

#-----------------------------------------------------------------------

CPP    = $(CPP_) -DMPI  -DHOST=\"LinuxIFC\" -DIFC \
-DCACHE_SIZE=4000 -DPGF90 -Davoidalloc -DNGZhalf \
-DMPI_BLOCK=8000 -Duse_collective -DscaLAPACK    \
-DRPROMU_DGEMV  -DRACCMU_DGEMV

#-----------------------------------------------------------------------
# location of SCALAPACK
# if you do not use SCALAPACK simply leave this section commented out
#-----------------------------------------------------------------------

# usually simplest link in mkl scaLAPACK
BLACS= -lmkl_blacs_openmpi_lp64
SCA= $(MKL_PATH)/libmkl_scalapack_lp64.a $(BLACS)
#SCA= -lmkl_scalapack_lp64.a -lmkl_blacs_openmpi_lp64

#-----------------------------------------------------------------------
# libraries
#-----------------------------------------------------------------------

LIB     = -L../vasp.5.lib -ldmy  \
../vasp.5.lib/linpack_double.o \
$(SCA) $(LAPACK) $(BLAS)

#-----------------------------------------------------------------------
# parallel FFT
#-----------------------------------------------------------------------

# FFT: fftmpi.o with fft3dlib of Juergen Furthmueller
FFT3D   = fftmpi.o fftmpi_map.o fft3dfurth.o fft3dlib.o $(MKL_FFTW_PATH)/libfftw3xf_intel.a

# alternatively: fftw.3.1.X is slighly faster and should be used if available
#FFT3D   = fftmpiw.o fftmpi_map.o fftw3d.o fft3dlib.o  /opt/libs/fftw-3.1.2/lib/libfftw3.a

# you may also try to use the fftw wrapper to mkl (but the path might vary a lot)
# it seems this is best for AMD based systems
#FFT3D   = fftmpiw.o fftmpi_map.o  fftw3d.o  fft3dlib.o   $(MKL_FFTW_PATH)/libfftw3xf_intel.a
#INCS = -I$(MKLROOT)/include/fftw

#-----------------------------------------------------------------------
# general rules and compile lines
#-----------------------------------------------------------------------
BASIC=   symmetry.o symlib.o   lattlib.o  random.o


SOURCE=  base.o     mpi.o      smart_allocate.o      xml.o  \
constant.o jacobi.o   main_mpi.o  scala.o   \
asa.o      lattice.o  poscar.o   ini.o  mgrid.o  xclib.o  vdw_nl.o  xclib_grad.o \
radial.o   pseudo.o   gridq.o     ebs.o  \
mkpoints.o wave.o     wave_mpi.o  wave_high.o  spinsym.o \
$(BASIC)   nonl.o     nonlr.o    nonl_high.o dfast.o    choleski2.o \
mix.o      hamil.o    xcgrad.o   xcspin.o    potex1.o   potex2.o  \
constrmag.o cl_shift.o relativistic.o LDApU.o \
paw_base.o metagga.o  egrad.o    pawsym.o   pawfock.o  pawlhf.o   rhfatm.o  hyperfine.o paw.o   \
mkpoints_full.o       charge.o   Lebedev-Laikov.o  stockholder.o dipol.o    pot.o \
dos.o      elf.o      tet.o      tetweight.o hamil_rot.o \
chain.o    dyna.o     k-proj.o    sphpro.o    us.o  core_rel.o \
aedens.o   wavpre.o   wavpre_noio.o broyden.o \
dynbr.o    hamil_high.o  rmm-diis.o reader.o   writer.o   tutor.o xml_writer.o \
brent.o    stufak.o   fileio.o   opergrid.o stepver.o  \
chgloc.o   fast_aug.o fock_multipole.o  fock.o  mkpoints_change.o sym_grad.o \
mymath.o   internals.o npt_dynamics.o   dynconstr.o dimer_heyden.o dvvtrajectory.o vdwforcefield.o \
nmr.o      pead.o     subrot.o   subrot_scf.o \
force.o    pwlhf.o    gw_model.o optreal.o  steep.o    davidson.o  david_inner.o \
electron.o rot.o  electron_all.o shm.o    pardens.o  paircorrection.o \
optics.o   constr_cell_relax.o   stm.o    finite_diff.o elpol.o    \
hamil_lr.o rmm-diis_lr.o  subrot_cluster.o subrot_lr.o \
lr_helper.o hamil_lrf.o   elinear_response.o ilinear_response.o \
linear_optics.o \
setlocalpp.o  wannier.o electron_OEP.o electron_lhf.o twoelectron4o.o \
mlwf.o     ratpol.o screened_2e.o wave_cacher.o chi_base.o wpot.o \
local_field.o ump2.o ump2kpar.o fcidump.o ump2no.o \
bse_te.o bse.o acfdt.o chi.o sydmat.o dmft.o \
rmm-diis_mlr.o  linear_response_NMR.o wannier_interpol.o linear_response.o

vasp: $(SOURCE) $(FFT3D) $(INC) main.o
rm -f vasp
$(FCL) -o vasp main.o  $(SOURCE)   $(FFT3D) $(LIB) $(LINK)
makeparam: $(SOURCE) $(FFT3D) makeparam.o main.F $(INC)
$(FCL) -o makeparam  $(LINK) makeparam.o $(SOURCE) $(FFT3D) $(LIB)
zgemmtest: zgemmtest.o base.o random.o $(INC)
$(FCL) -o zgemmtest $(LINK) zgemmtest.o random.o base.o $(LIB)
dgemmtest: dgemmtest.o base.o random.o $(INC)
$(FCL) -o dgemmtest $(LINK) dgemmtest.o random.o base.o $(LIB)
ffttest: base.o smart_allocate.o mpi.o mgrid.o random.o ffttest.o $(FFT3D) $(INC)
$(FCL) -o ffttest $(LINK) ffttest.o mpi.o mgrid.o random.o smart_allocate.o base.o $(FFT3D) $(LIB)
kpoints: $(SOURCE) $(FFT3D) makekpoints.o main.F $(INC)
$(FCL) -o kpoints $(LINK) makekpoints.o $(SOURCE) $(FFT3D) $(LIB)

clean:
-rm -f *.g *.f *.o *.L *.mod ; touch *.F

main.o: main$(SUFFIX)
$(FC) $(FFLAGS)$(DEBUG)  $(INCS) -c main$(SUFFIX)
xcgrad.o: xcgrad$(SUFFIX)
$(FC) $(FFLAGS) $(INLINE)  $(INCS) -c xcgrad$(SUFFIX)
xcspin.o: xcspin$(SUFFIX)
$(FC) $(FFLAGS) $(INLINE)  $(INCS) -c xcspin$(SUFFIX)

makeparam.o: makeparam$(SUFFIX)
$(FC) $(FFLAGS)$(DEBUG)  $(INCS) -c makeparam$(SUFFIX)

makeparam$(SUFFIX): makeparam.F main.F
#
# MIND: I do not have a full dependency list for the include
# and MODULES: here are only the minimal basic dependencies
# if one strucuture is changed then touch_dep must be called
# with the corresponding name of the structure
#
base.o: base.inc base.F
mgrid.o: mgrid.inc mgrid.F
constant.o: constant.inc constant.F
lattice.o: lattice.inc lattice.F
setex.o: setexm.inc setex.F
pseudo.o: pseudo.inc pseudo.F
mkpoints.o: mkpoints.inc mkpoints.F
wave.o: wave.F
nonl.o: nonl.inc nonl.F
nonlr.o: nonlr.inc nonlr.F

$(OBJ_HIGH):
$(CPP)
$(FC) $(FFLAGS) $(OFLAG_HIGH) $(INCS) -c $*$(SUFFIX)
$(OBJ_NOOPT):
$(CPP)
$(FC) $(FFLAGS) $(INCS) -c $*$(SUFFIX)

fft3dlib_f77.o: fft3dlib_f77.F
$(CPP)
$(F77) $(FFLAGS_F77) -c $*$(SUFFIX)

.F.o:
$(CPP)
$(FC) $(FFLAGS) $(OFLAG) $(INCS) -c $*$(SUFFIX)
.F$(SUFFIX):
$(CPP)
$(SUFFIX).o:
$(FC) $(FFLAGS) $(OFLAG) $(INCS) -c $*$(SUFFIX)

# special rules
#-----------------------------------------------------------------------
# these special rules have been tested for ifc.11 and ifc.12 only

fft3dlib.o : fft3dlib.F
$(CPP)
$(FC) -FR -lowercase -O2 -c $*$(SUFFIX)
fft3dfurth.o : fft3dfurth.F
$(CPP)
$(FC) -FR -lowercase -O1 -c $*$(SUFFIX)
fftw3d.o : fftw3d.F
$(CPP)
$(FC) -FR -lowercase -O1 $(INCS) -c $*$(SUFFIX)
fftmpi.o : fftmpi.F
$(CPP)
$(FC) -FR -lowercase -O1 -c $*$(SUFFIX)
fftmpiw.o : fftmpiw.F
$(CPP)
$(FC) -FR -lowercase -O1 $(INCS) -c $*$(SUFFIX)
wave_high.o : wave_high.F
$(CPP)
$(FC) -FR -lowercase -O1 -c $*$(SUFFIX)
# the following rules are probably no longer required (-O3 seems to work)
wave.o : wave.F
$(CPP)
$(FC) -FR -lowercase -O2 -c $*$(SUFFIX)
paw.o : paw.F
$(CPP)
$(FC) -FR -lowercase -O2 -c $*$(SUFFIX)
cl_shift.o : cl_shift.F
$(CPP)
$(FC) -FR -lowercase -O2 -c $*$(SUFFIX)
us.o : us.F
$(CPP)
$(FC) -FR -lowercase -O2 -c $*$(SUFFIX)
LDApU.o : LDApU.F
$(CPP)
$(FC) -FR -lowercase -O2 -c $*$(SUFFIX)

Adding SVG MIME Type to Apache on CentOS

What is MIME?

According to www.w3.org/services/svg-server

MIME Types
(sometimes referred to as “Internet media types”) are the primary method to
indicate the type of resources delivered via MIME-aware protocols such as HTTP
and email. User agents (such as browsers) use media types to determine whether
that user agent supports that specific format, and how the content should be
processed. When an SVG document is not served with the correct MIME Type in the
Content-Type header, it might not work as intended by the author; for example,
a browser might render the SVG document as plain text or provide a “save-as”
dialog instead of rendering the image.

Step 1: To add SVG MIME as list of supported MIME Type, simply add these lines to your /etc/httpd/conf/httpd.conf. I have placed it at around line 786

#
# AddType allows you to add to or override the MIME configuration
# file mime.types for specific file types.
#
#AddType application/x-tar .tgz
AddType image/svg+xml svg svgz
AddEncoding gzip svg

Step 2: One more thing do ensure you have the following line at your /etc/mime.type

image/svg+xml svg svgz

Step 3. Remember to restart the Apache

# service httpd restart

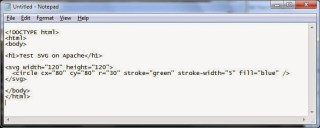

Step 4: Test the SVG with a sample script. It should show up on your web server

Creating a RAM Disk on CentOS 6

Do take a look at clear and easy-to-understand article on the Difference between ramfs and tmpfs and Create a Ram Disk in Linux for more detailed information. The information of this blog is taken from Create a Ram Disk in Linux

There are many reasons to create a RAM Disk. One reason is to have a isolated latency test or throughput test between interconnect, but discounting the effects of the spinning disk I/O that might be the bottleneck to the test. Another case is to store temp files which require very fast I/O. Nothing beats memory.

Step 1: Check how much RAM you have. Display it in GB

# free -g
[root@n01 ~]# free -m
             total       used       free     shared    buffers     cached
Mem:         50276       1219      49056          0         83        555
-/+ buffers/cache:        580      49695
Swap:        25207          0      25207

You can also display with -m (MB) or -k (KB)

Step 2: Create and Mount a RAM Disk

# mkdir /mnt/ramdisk
# mount -t tmpfs -o size=16g tmpfs /mnt/ramdisk

Step 3: If you wish to create automatic mount, do place it at /etc/fstab

tmpfs       /mnt/ramdisk tmpfs   nodev,nosuid,noexec,nodiratime,size=16g   0 0

Tracking NetApp Cluster-Mode Performance

To track NetApp Storage on Cluster Performance, do use the statistics

netapp-cluster1::> statistics show-periodic
cluster:summary: cluster.cluster: 9/9/2014 09:33:29
cpu    total                   data     data     data cluster  cluster  cluster     disk     disk
busy      ops  nfs-ops cifs-ops busy     recv     sent    busy     recv     sent     read    write
---- -------- -------- -------- ---- -------- -------- ------- -------- -------- -------- --------
5%      303      303        0   2%   4.86MB    223KB      0%   1.16MB   1.17MB    685KB    571KB
5%      312      312        0   3%   8.27MB    359KB      0%   1.11MB   1001KB    679KB   39.4KB
8%      300      300        0   2%   7.29MB    495KB      0%   2.87MB   3.30MB   2.66MB   59.1KB
6%      158      158        0   1%   3.53MB    168KB      0%   2.16MB   1.51MB   2.71MB   11.1MB
5%      184      184        0   2%   4.48MB   1.22MB      0%   1.99MB   1.97MB   1.21MB   10.9MB
5%      213      213        0   1%   2.82MB    222KB      0%    902KB    749KB    240KB    671KB
3%      144      144        0   1%   2.32MB    762KB      0%    559KB    685KB   96.6KB   15.8KB
4%      199      199        0   1%   3.73MB    881KB      0%    796KB    715KB    390KB   39.6KB
7%      164      164        0   1%   4.49MB    365KB      0%   2.34MB   2.43MB   2.52MB   8.33MB
7%      115      115        0   2%   4.07MB    154KB      0%   1.23MB   1.25MB   2.41MB   9.80MB
3%      224      224        0   1%   2.72MB    163KB      0%   1.80MB    721KB    407KB    996KB
4%      220      220        0   1%   4.38MB   1.32MB      0%    451KB   1.54MB    199KB    110KB
5%      124      124        0   1%   2.97MB    157KB      0%    315KB    273KB    251KB   15.8KB
7%      153      153        0   0%   1.76MB    139KB      0%    220KB    268KB   2.54MB   1.28MB
4%      120      120        0   0%   1.30MB   80.4KB      0%    417KB    325KB   2.86MB   13.9MB
cluster:summary: cluster.cluster: 9/9/2014 09:34:01
cpu    total                   data     data     data cluster  cluster  cluster     disk     disk
busy      ops  nfs-ops cifs-ops busy     recv     sent    busy     recv     sent     read    write
---- -------- -------- -------- ---- -------- -------- ------- -------- -------- -------- --------
Minimums:
3%      115      115        0   0%   1.30MB   80.4KB      0%    220KB    268KB   96.6KB   15.8KB
Averages for 15 samples:
5%      195      195        0   1%   3.93MB    451KB      0%   1.22MB   1.19MB   1.32MB   3.84MB
Maximums:
8%      312      312        0   3%   8.27MB   1.32MB      0%   2.87MB   3.30MB   2.86MB   13.9MB
